80Ghz Radar Level Transmitter Slurry Storage Tank RS485 Radar Liquid Level Sensor

  • 1
  • 2

Brand Name : Wuxi Daoxin Technology Co., Ltd.

Model Number : DX-RD80G

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100+set+5

Delivery Time : 2-5 work days

Packaging Details : carton、30cm*30cm*30cm

Grade : Industrial

Customized Support : OEM, ODM

Measuring Medium : Cement

Power Supply : 15~28VDC

Blind Zone : 10cm

Working Temp Span : Working Temp Span

Warranty : 12 Months

Measurement Accuracy : ±1mm

Signal Output : 4-20mA/ RS485

Installation Method : Thread Or Flange

Contact Now

80Ghz Radar Level Transmitter Slurry Storage Tank Radar Liquid Level Sensor 15-28VDC

DX-RD80G 80 ghz radar level sensor for slurry storage tank

80G Continuous Frequency Modulation Wave Radar Level Meter

Product Description:

What's the features of Radar Level Meter?

Sensor is 26G High Frequency radar level measurement instrument, measure the maximum distance to 70 meters. Antenna being further optimized, fast new microprocessor could be higher-speed signals processing, makes the instrument can be used in reactors,solid-state storage bin and some complicated measuring conditions.

The series is FMCW radar operating at 76-81 GHz, which has a maximum measuring range of 120m and a minimum blind zone of 8cm. It supports 4-wire and 2-wire applications. Higher operating frequency and shorter wavelength make it ideal for solid applications, including those with extreme dust and high temperature to + 200℃. The radar consists of an electronic circuit coupled to a lens antenna and flange for quick and easy positioning.

Product Paramenters

Frequency
76GHz ~ 81GHz, 5GHz FMCW bandwidth
Measuring range
x0: 0.3 m ~ 60m
x1: 0.08m~30m
x2: 0.6m ~ 120m
Measurement accuracy
±1mm
Beam angle
3°/6°
Minimum measured dielectric constant
>=2
Power
15~28VDC
Signal output
2x: 4 ~ 20mA or RS-485
3x: 4~20mA
Fault output
3.8mA, 4mA, 20mA, 21mA, hold
Enclosure
Aluminum alloy, stainless steel
Antenna type
Lens antenna/anti-corrosive antenna / flange isolated by quartz
Process temperature
T0:-40~85℃; T1:-40~200℃; T2:-40~500℃; T3:-40~1000℃
Process pressure
-0.1~2MPa
Product Size
Ø100*270mm
Cable entry
M20*1.5
Recommended cables
AWG18 or 0.75mm²
Protection class
IP67
Explosion-proof grade
ExdiaIICT6
Installation method
Thread or flange

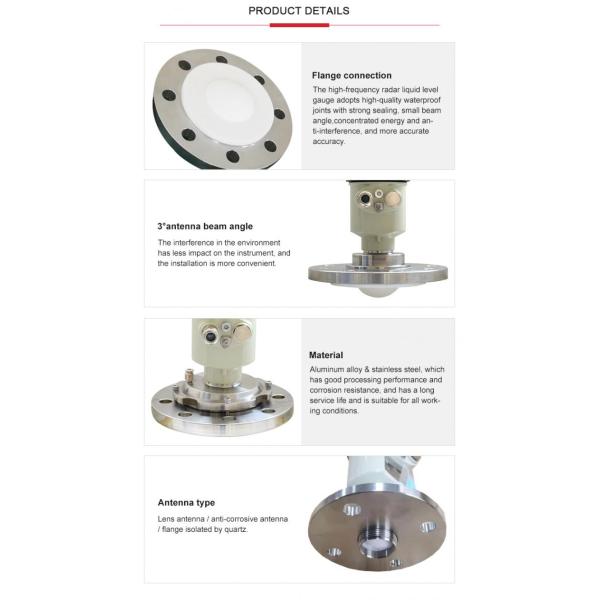

Product Features

80Ghz Radar Level Transmitter Slurry Storage Tank RS485 Radar Liquid Level Sensor

Applications:

80Ghz Radar Level Transmitter Slurry Storage Tank RS485 Radar Liquid Level Sensor

80Ghz Radar Level Transmitter Slurry Storage Tank RS485 Radar Liquid Level Sensor

80Ghz Radar Level Transmitter Slurry Storage Tank RS485 Radar Liquid Level Sensor
